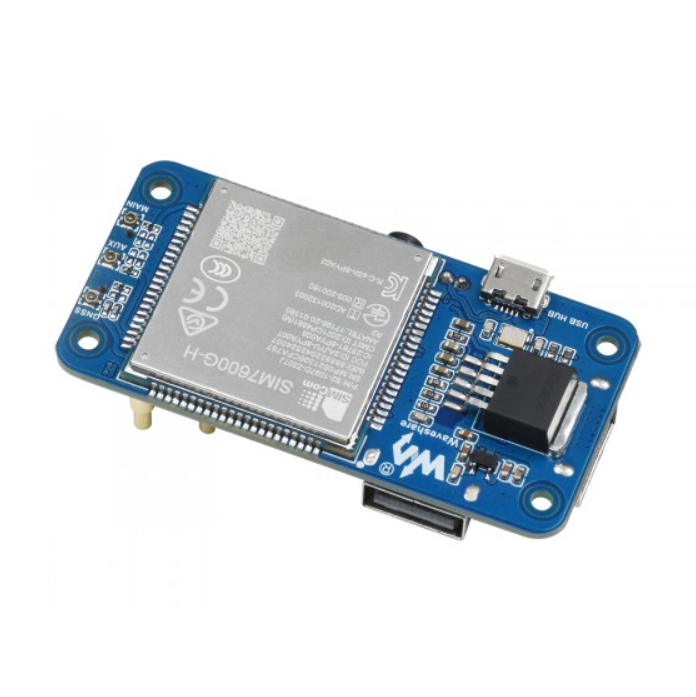

Waveshare SIM7600G-H 4G HAT (B)

Network & Wireless

A global-coverage LTE Cat-4 and GNSS expansion board designed for Raspberry Pi and single-board systems. Powered by the SIM7600G-H module, it supports high-speed 4G data transfer (150 Mbps downlink), voice calls, SMS, and multi-constellation satellite positioning (GPS, GLONASS, BeiDou) over UART/USB interfaces.

Specifications:

- Cellular Technology: LTE Cat-4 (Downlink up to 150 Mbps, Uplink up to 50 Mbps), 3G, 2G fallback
- Frequency Bands: Global Multi-Band LTE-FDD / LTE-TDD / HSPA+
- Positioning Engine: GNSS (GPS, GLONASS, BeiDou, Galileo)
- Host Interface: Raspberry Pi 40-pin GPIO + USB 2.0 interface
- Audio Interface: Onboard 3.5mm audio jack and audio decoder
- Operating Voltage: 5V DC via GPIO or microUSB
- Application: Remote IoT edge gateways, 4G router failover, vehicle telematics

Current Stock: 2 Borrowed: 0
