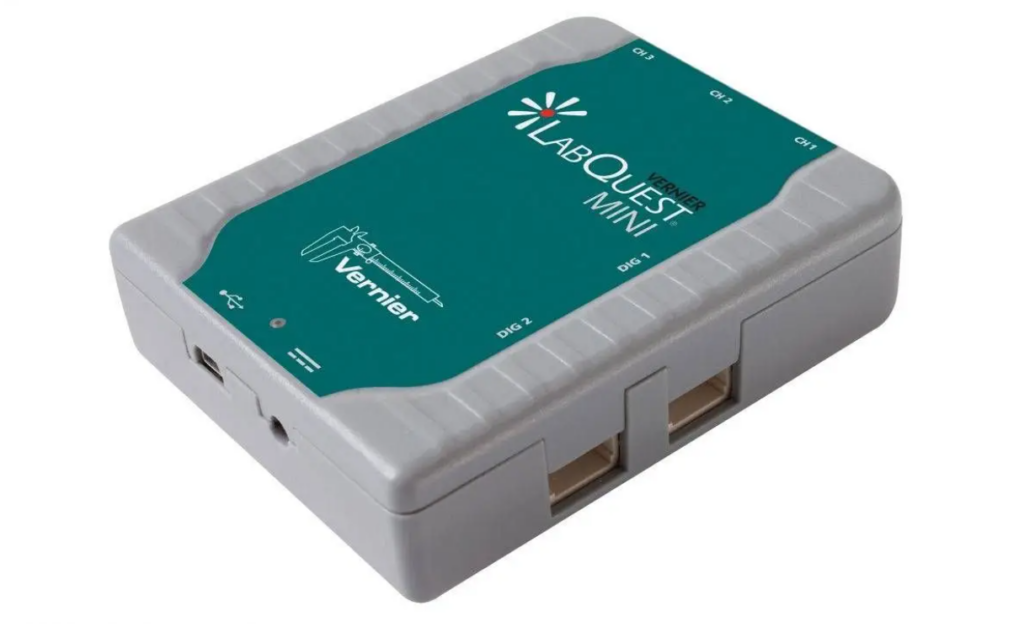

Vernier LabQuest Mini

Sensors & Modules

The Vernier LabQuest Mini (LQ-MINI) is a multi-channel USB data collection interface offering 12-bit resolution and sampling rates up to 100,000 samples/second. Featuring three analog ports and two digital ports, it supports over 70 compatible Vernier sensors, streaming data directly to Windows, macOS, and Chromebook environments via bus power.

Specifications:

- Computer Interface: USB 2.0 Full Speed (bus-powered, no external supply or batteries required)
- Analog Inputs: 3 auto-ID channels (CH 1–CH 3)
- Digital Inputs: 2 auto-ID channels (DIG 1 & DIG 2)
- Analog Resolution: 12-bit ADC
- Maximum Sampling Rate: 100,000 samples/second (single sensor) / 10,000 samples/second (multi-sensor)
- Minimum Sampling Rate: 0.00125 samples/second (800 s/sample)
- Physical Dimensions: 10.5 cm × 8.5 cm × 2.6 cm
- Sensor Compatibility: Works with over 70 Vernier analog/digital sensors via Graphical Analysis & Logger Pro software

Current Stock: 1 Borrowed: 0
