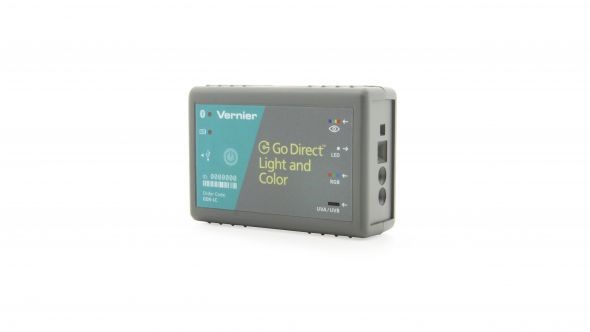

The Vernier Go Direct Light and Color Sensor integrates three distinct sensing channels: a visible light sensor (400–800 nm, 0–150,000 lux, 1000 Hz sampling), a UVB sensor (260–315 nm), and an RGB color sensor with an integrated white LED. It communicates via Bluetooth 4.2 or USB for real-time optical data collection.
Specifications:
- Visible Light Range: 0 to 150,000 lux (400–800 nm wavelength band)
- Visible Light Resolution: ±0.2 lx (<10,000 lx) / ±5 lx (>10,000 lx)
- Max Visible Sampling Rate: 1,000 samples/s (enables AC flicker analysis)
- UV Sensing Channel: Responsive to UVB spectrum (260–315 nm half-sensitivity range)
- RGB Sensing Peaks: 615 nm (Red), 525 nm (Green), 465 nm (Blue)
- Active Illumination: Built-in white LED for controlled surface color reflectivity
- Connectivity Options: Bluetooth® v4.2 wireless and USB 2.0 full speed
- Power & Battery: 300 mAh Li-Poly rechargeable battery (~24 hours continuous runtime)
Use the form to request the item, and we will check the availability and get back to you through email when we have processed your request.
