Sensors & Modules

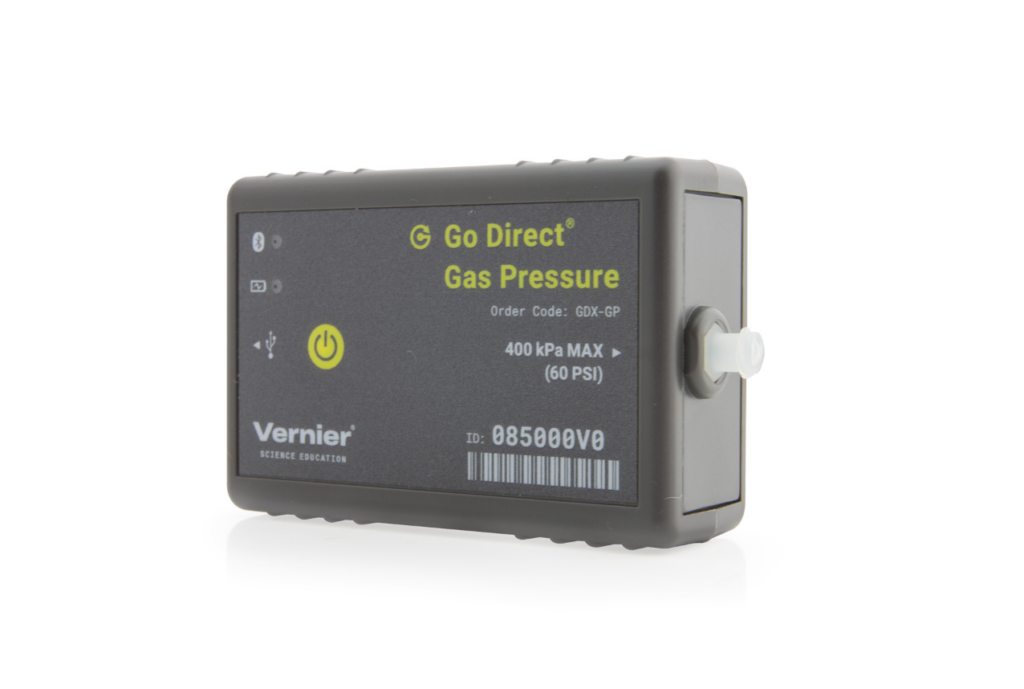

The Vernier Go Direct Gas Pressure Sensor measures absolute gas pressure up to 400 kPa with 0.03 kPa resolution. Utilizing an internal vacuum reference and temperature-compensated transducer, it transfers real-time telemetry at rates up to 50 Hz via Bluetooth 4.2 or USB 2.0 to Vernier Graphical Analysis software.
Specifications:
- Measurement Range: 0 to 400 kPa (0 to 3.95 atm / 0 to 3000 mmHg)
- Accuracy: ±3 kPa (factory calibrated)
- Resolution: 0.03 kPa
- Maximum Sampling Rate: 50 samples/second
- Overpressure Tolerance: Up to 410 kPa maximum pressure without damage
- Internal Sensor Volume: 0.8 mL
- Supported Units: kPa, mmHg, inHg, mbar, psi, atm, torr
- Connectivity Interfaces: Bluetooth® v4.2 wireless and USB 2.0 full-speed
- Power Source: 300 mAh Li-Poly rechargeable battery (~24 hours continuous operation)
Use the form to request the item, and we will check the availability and get back to you through email when we have processed your request.
