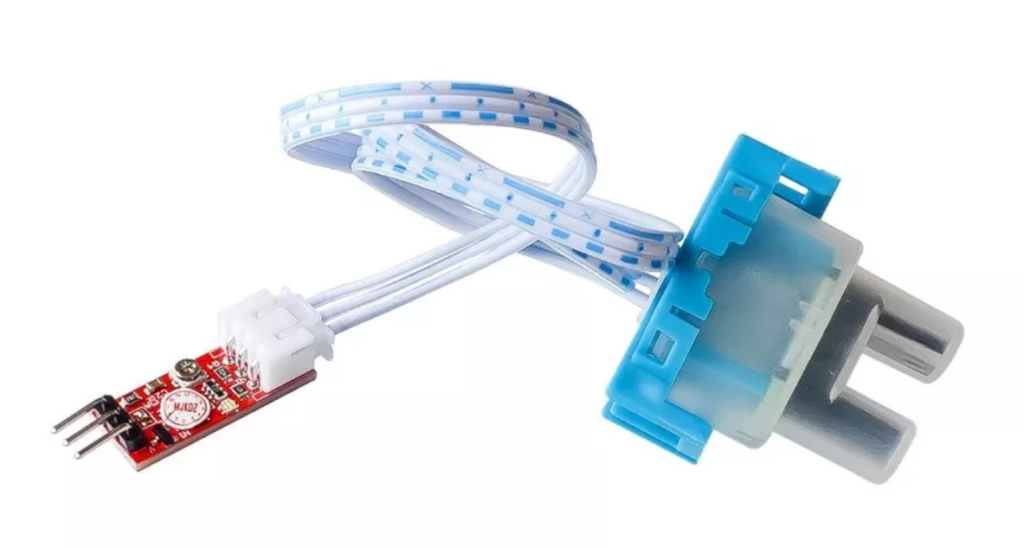

The Turbidity Sensor Module measures liquid clarity by detecting light transmittance and scattering rates from total suspended solids (TSS). Operating at 5V DC, it features dual analog (0–4.5V) and digital TTL outputs with an adjustable threshold potentiometer, interfacing seamlessly with Arduino and microcontroller platforms for water quality monitoring.
Specifications:
- Sensor Type: Turbidity Sensor Module (Optical)
- Operating Voltage: 5V DC
- Operating Current: 40 mA (maximum)
- Measurement Principle: Optical infrared light transmittance and scattering
- Signal Outputs: Dual output - Analog (0 to 4.5V) and Digital TTL (High/Low)
- Threshold Control: Onboard 10k potentiometer for digital switching threshold
- Response Time: <500 ms
- Operating Temperature: 5°C to 90°C
- Storage Temperature: -10°C to 90°C
- Adapter Module Dimensions: 38 x 28 x 10 mm
