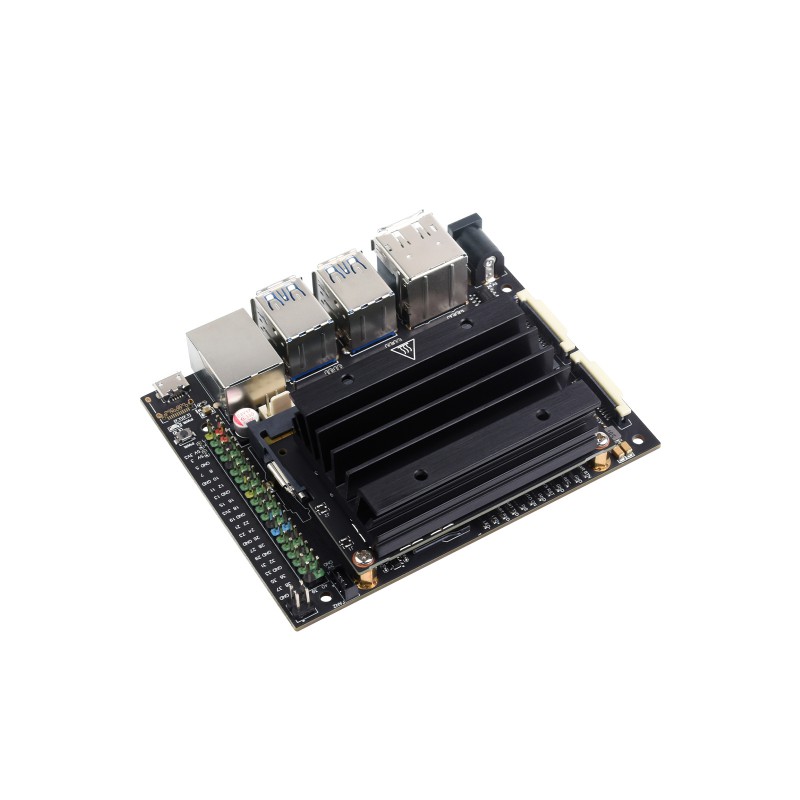

The Waveshare Jetson Nano Development Kit (A-Version) is a compact AI computer board powered by a quad-core ARM Cortex-A57 CPU and a 128-core Maxwell GPU. Equipped with 4GB 64-bit LPDDR4 memory, 4K display support, and dual MIPI-CSI camera connectors, it executes neural networks natively for edge computing and robotics.
Specifications:
- Product Name: Waveshare Jetson Nano Development Kit (A-Version)
- CPU: Quad-Core ARM Cortex-A57 @ 1.43 GHz
- GPU: 128-Core NVIDIA Maxwell GPU @ 921 MHz (472 GFLOPS FP16 performance)
- Memory (RAM): 4 GB 64-bit LPDDR4 (25.6 GB/s bandwidth)
- Storage Support: MicroSD Card Slot (System boot and storage expandability)
- Video Output: HDMI 2.0 and DisplayPort 1.2 (Supports dual 4K displays)
- Camera Interfaces: 2x MIPI CSI-2 RX Lanes (Dual camera module support)
- USB Ports: 4x USB 3.0 Type-A Ports, 1x Micro-USB (for 5V power input or USB device mode)
- Networking: Gigabit Ethernet RJ45 Port (10/100/1000 Mbps)
- Expansion Headers: 40-Pin Expansion Header (GPIO, I2C, SPI, UART, I2S) & M.2 Key E Slot (for Wi-Fi/BT)
- Power Options: 5V/4A DC Barrel Jack or 5V/2A Micro-USB Port
- Dimensions: 100 mm × 80 mm × 29 mm
