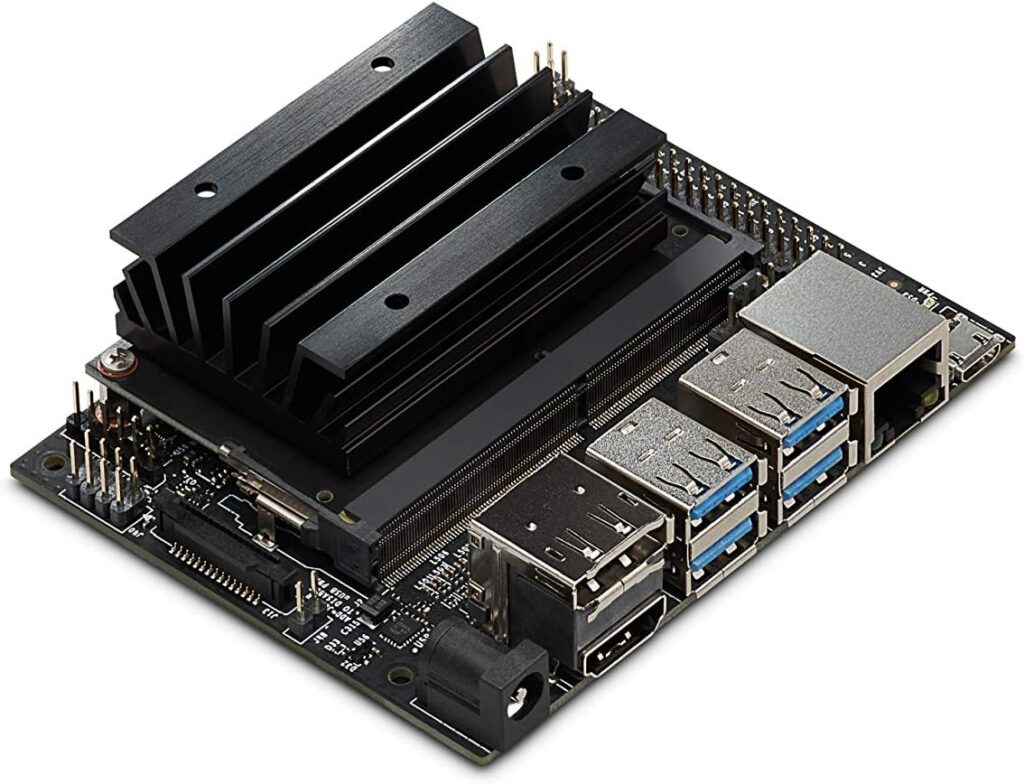

The official NVIDIA Jetson Nano Developer Kit (B01 revision) is a compact AI computer built for edge computing and autonomous systems. Powered by a quad-core ARM Cortex-A57 CPU and a 128-core Maxwell GPU, it runs parallel neural networks efficiently while supporting dual cameras, 4K video output, and standard Linux software stacks.
Specifications:
- Product Name: NVIDIA Jetson Nano Developer Kit (Revision B01 - 945-13450-0000-100)
- CPU: Quad-Core ARM Cortex-A57 @ 1.43 GHz
- GPU: 128-Core NVIDIA Maxwell GPU @ 921 MHz (472 GFLOPS FP16 performance)
- Memory (RAM): 4 GB 64-bit LPDDR4 (25.6 GB/s bandwidth)
- Storage Support: MicroSD Card Slot (Used for system boot and main storage)
- Video Output: HDMI 2.0 and DisplayPort 1.2 (Supports dual active 4K displays)
- Camera Interfaces: 2x MIPI CSI-2 RX Lanes (Dual camera support for stereo vision)
- USB Ports: 4x USB 3.0 Type-A, 1x Micro-USB (for 5V power input or device configuration)
- Networking: Gigabit Ethernet RJ45 Port (10/100/1000 Mbps)
- Expansion Headers: 40-Pin GPIO Header (I2C, SPI, UART, I2S) & M.2 Key E Slot (for Wi-Fi/BT module)
- Power Options: 5V/4A DC Barrel Jack (Recommended for heavy loads) or 5V/2A Micro-USB
- Board Dimensions: 100 mm × 80 mm × 29 mm
Use the form to request the item, and we will check the availability and get back to you through email when we have processed your request.
