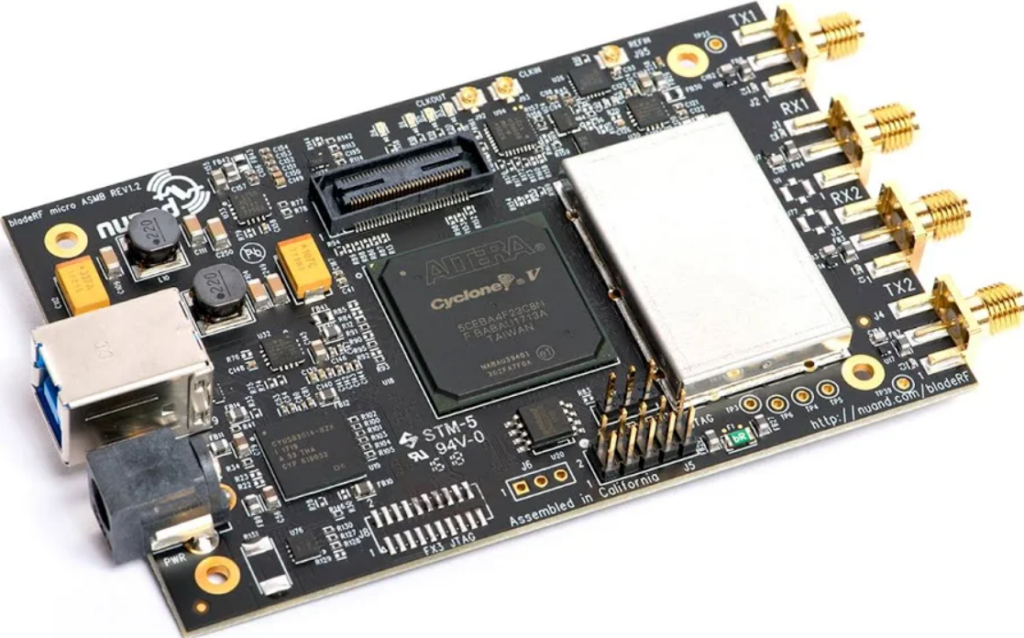

A high-performance, USB 3.0 MIMO Software Defined Radio (SDR) covering a 47 MHz to 6 GHz frequency range. Featuring an onboard Cyclone V FPGA, 2x2 MIMO transceivers, and up to 61.44 MHz RF bandwidth, it provides researchers with a full-duplex platform for wireless protocol analysis, RF prototyping, and cellular signals.
Specifications:
- RF Frequency Range: 47 MHz to 6.0 GHz
- MIMO Channels: 2 Transmit (Tx), 2 Receive (Rx) Full-Duplex
- Onboard FPGA: Intel Cyclone V (49K or 301K LE)
- Sample Rate / Bandwidth: Up to 61.44 MHz RF Bandwidth
- Interface: USB 3.0 SuperSpeed (Cypress FX3)
- Open-Source Support: GNU Radio, SDR#, Wireshark, MATLAB/Simulink
- Primary Application: Custom wireless protocol development, RF spectrum analysis, cellular base station research
Use the form to request the item, and we will check the availability and get back to you through email when we have processed your request.
